20' Guide
Starting at $45,000
20' Guide - Starting price no motor $45,000. Includes standard options
Experience the perfect blend of durability, performance, and versatility with our
20' Guide. Designed for both leisure and adventure, this vessel is ideal for various
water activities including fishing, cruising, and exploring.
Features:
- Length: 20 feet
- Hull Material: High-quality fiberglass for strength and longevity
- Engine: Options available to meet your power and efficiency needs
- Capacity: Comfortable seating and ample storage for all your gear
- Design: Sleek and functional layout, optimized for both performance and comfort
Reach out about this model
20’ Guide Overview
Reliable and Seaworthy
This design provides a smooth and dry ride when the seas pick up. A forward casting deck with ample storage allows for better sight fishing and fighting big fish from the bow. The aft deck is also large and home to a 35 gallon live well with access underneath to pumps and rigging. The Guide 20 is the perfect boat for light tackle inshore and near-shore fishing
- CAPACITY 9
- LENGTH 20’
Performance Data
20' Guide
- Engine power and fuel efficiency
- Custom console and leaning post

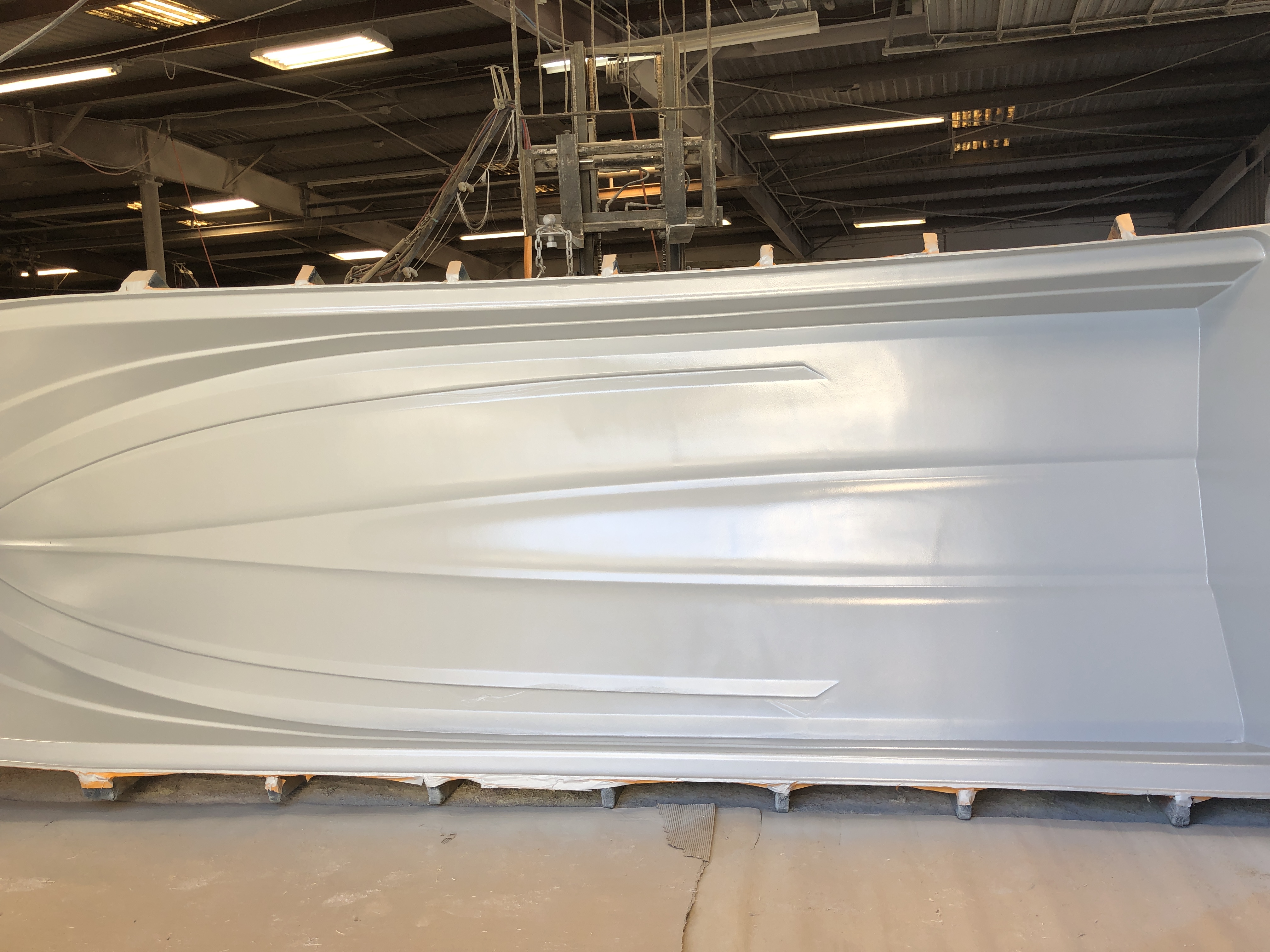

- V-shaped hull helping cut through sea state
- Open deck design
- Fishing, Family Recreation, Load handling
Standard Features
Structural / Design
- 10 year structural hull warranty
- 100% composite - no wood construction
- Transom integrated stringer system
- High density fiber/foam transom
- Custom yacht style easy-to-clean nonskid
- Foam-filled under deck - Unsinkable
- Closed-cell foam, cored for strength
- Vinylester resin skin coat
- 100% hand laid biaxial structural fiberglass
- Divincell cored decks - superior strength
- Stainless rub rail (white base w/ 1/2" insert)
- Decks are infused to the hull and stringers
- Console is bonded from inside
Performance Features
- Hydraulic steering system
- Custom trim tabs by Lenco
- 26 gallon LED lighted bait well in transom
- Clear bait well lid w/ optional logo
- Tournament style console with easy access
- Console cooler with backrest and seat cushion
- Aluminum leaning post w/ four rocket launchers
- Electronics can be flush mounted in console face
Storage
- Large front deck storage
- Dry storage inside console
- Optional glove box in console door
- Separate anchor locker holds 400' of line
Hardware
- 316 stainless hardware throughout
- Flush mounted double back hinges
- Two stainless pop-up stern cleats
- One stainless pop-up bow cleat
- Three spoke steering wheel with assist knob
- Stainless removable garboard boat drain plug
- Large stainless D rings on bow and transom
Electrical
- Waterproof customizable switch panel
- Pop up circuit breakers for every switch
- LED navigation lighting
- Heat-shrink sealed wire connections throughout
- Hand-wired meticulously organized under console
- Easy to access rigging tubes for future additions
Plumbing
- Custom scupper system
- Stainless deck drains
- All hoses double clamped w/ premium stainless
- Automatic bilge pump - 1000 GPH
- Float switch for safety - wired hot
- Rule tournament bait pump - 800 GPH
- High speed water pick up with shut off ball valve
- Inline bait pump filter
Specifications
- Length: 20' 2"
- Beam: 6' 3"
- Draft: 8"
- Fuel: 27 gal coated aluminum fuel tank
- Approximate dry hull weight - 1,700 lbs
